passenger lifts
At Acute Elevators, we deliver high-quality passenger lift solutions and provide industry-leading passenger lift solutions for commercial offices, retail spaces, hospitality, education, healthcare, and residential developments across the UK.
History
A beautiful place and well located near nature
Location
Wellness hotel in the heart of nature and mountains
Services
We offer a wide range of services in our hotel
Why Choose Acute Elevators for Passenger Lifts?
As an experienced lift company, we specialise in the supply and installation of all types of passenger lifts. This includes MR & MRL traction lifts, hydraulic lifts, duplex & multi group lift systems, anti-vandal lifts, evacuation lifts, firefighting lifts, and luxury bespoke lift systems.
Working in close collaboration with architects, designers, lift consultants, contractors, and end users, our team ensures every lift is intelligently designed to meet the unique needs of each project. With Acute Elevators’ experience and capability to supply and install passenger lifts for 4–46 passengers, up to 3,500 kg, travelling up to 48 floors at speeds up to 4.0 m/s, we can deliver solutions tailored to virtually any building or project requirement.
From initial consultation to final handover, we are committed to providing high-quality vertical transportation tailored to your vision, technical requirements, and budget. For a closer look at the advantages of installing a lift, read our guide on the six benefits of a passenger lift.
Acute Elevators Passenger Lift Installation Process
The passenger lift installation process is carefully managed to ensure safety, efficiency, and minimal disruption to your building. It begins with a detailed site survey, where our passenger lift installers in the UK assess the space, confirm the most suitable lift type and size, and identify any structural or electrical requirements.
Once the survey is complete, we provide full technical drawings and coordinate with architects, builders, or facilities teams to integrate the lift seamlessly into your design.
Before installation, the building is prepared, including shaft construction, pit formation, floor openings, and power supply setup. Certified engineers then deliver and assemble the lift components on site, following strict safety and quality standards.
After installation, each lift undergoes comprehensive testing, commissioning, and certification to ensure safe, smooth operation. Finally, we provide a full handover and user training, covering controls, safety features, and emergency procedures, with all documentation included. Ongoing maintenance and support are available to keep your passenger lift operating reliably for years to come.
.webp)
Advanced Passenger Lift Technology by Acute Elevators
Our passenger lifts feature the latest technology in high-resolution displays that continuously update the user with real-time information on the cabin’s location and time to arrival destination, all precise to less than 1mm. Executing the industry’s most innovative technologies of the highest quality lift components to create your elevator package, we ensure a first-class user experience.
a.webp)
Passenger Lift Safety Standards and Compliance
Safety is at the forefront of every passenger lift we design and install. All systems are fully compliant with EN81/20‑50 and, where required, EN81/21, and are engineered with advanced protection features including over‑speed control, fail‑safe braking and emergency communication systems.
Our experienced design team also overcomes restrictive site conditions—such as shallow pits, low headroom or unconventional shaft dimensions—by applying specialist knowledge and working closely with our supply chain to deliver fully compliant, space‑efficient solutions. Each lift undergoes rigorous testing, inspection and commissioning to ensure smooth, reliable performance, faster travel times and increased vertical traffic capacity, providing complete peace of mind.
.webp)
.webp)
.webp)

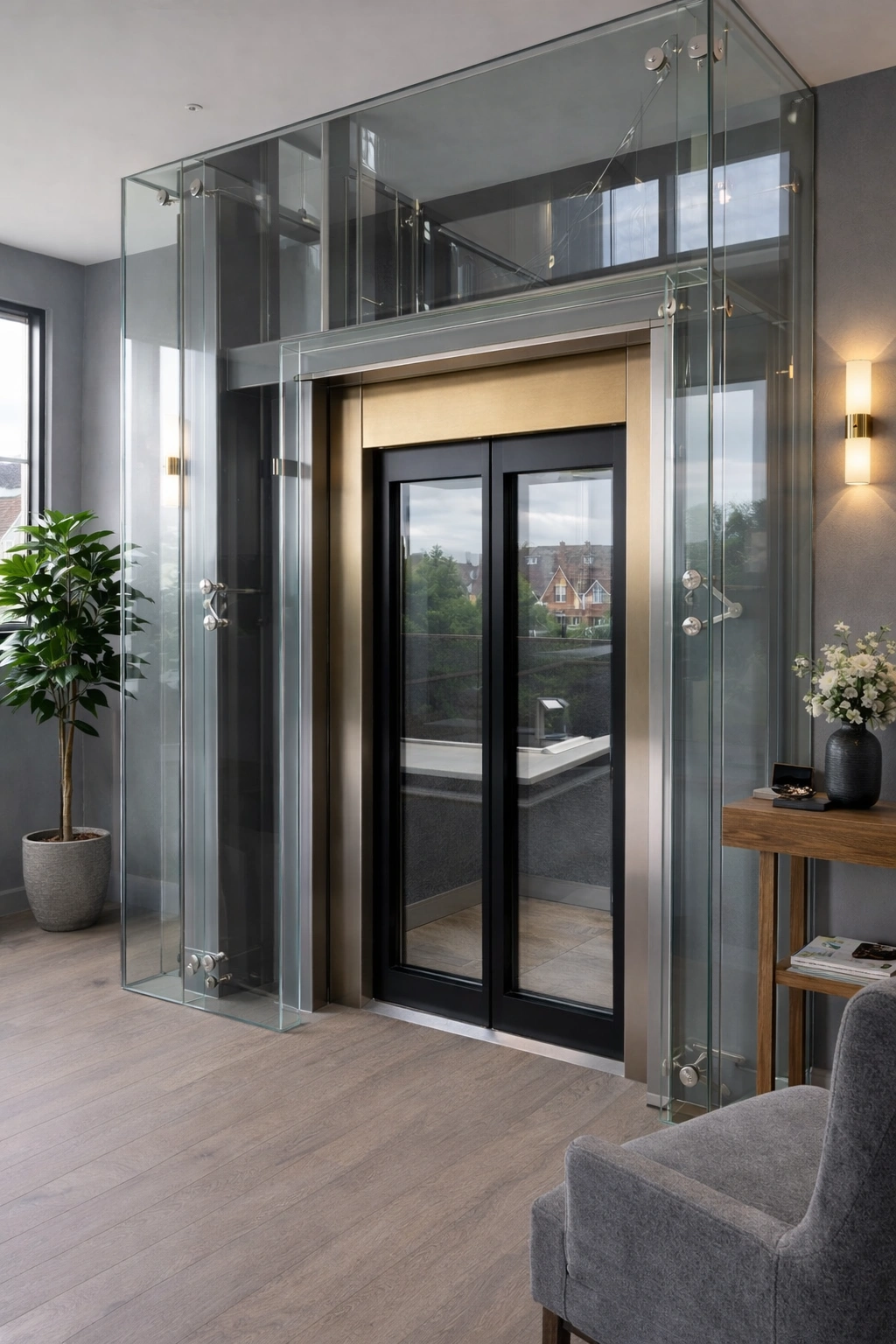

Acute Elevators Architectural Lift Structures
We offer passenger lift structures that are carefully designed and certified to be structurally compliant with the lift loads, stresses and space requirements of the building. A selection of framing and cladding options including various glass types and finishes are available. Our lift structures can provide 360° panoramic viewing giving an emotional connection to the surrounding architecture.
CONTACT USPASSENGER LIFT BROCHURES
Explore our range of Passenger lift brochures. If you need some advice on choosing which lift will meet your requirements, discuss a project, request a quotation or find out more about Acute Elevators, please contact a member of our team.
.webp)
PASSENGER LIFT brochure
Whether your building is large or small, new or existing, our range of MRL passenger lifts has everything covered. Our lift offers passengers a unique user experience, unrivalled level of quality and design whatever the environment.
SPECIFICATION
• Variable drive technology up-to 2 m/s
• Does not require a machine room (MRL)
• Traction drive system
• Rated load of up to 2500KG, 33 persons
• Travel up to 60m, 20 floors
• High energy efficiency
• Clean, modern finishing options
.webp)
goods passenger lift
For larger load capacity, Higher speed and high usage buildings, if you have the space either to replace an existing lift or new build project. Whether your building is large or small, new or existing, our range of MR passenger lifts has everything covered. Our lift offers passengers a unique user experience, unrivalled level of quality and design whatever the environment.
SPECIFICATION
• Variable drive technology up-to 4 m/s
• requires a machine room
• Traction drive system
• Rated load of up to 2500KG, 33 persons
• Travel up to 60m, 20 floors
• High energy efficiency
• Sleek, modern finishing options
FAQS
How long does a passenger lift installation take?
Installation time depends on the lift type, number of floors served, site conditions and project complexity. Typical installations for standard passenger lifts can take between 4-12 weeks from delivery to commissioning, while bespoke or complex lifts may take longer.
How often should a passenger lift be serviced in the UK?
Passenger lifts require regular servicing to ensure safe, reliable operation and to identify any early signs of wear. In the UK, we recommend quarterly maintenance for lifts in frequent use, helping to keep the system running smoothly and compliant with safety standards. For more detail, read our guide on how often a lift should be serviced.
What is the difference between a cabin lift and a passenger lift?
A cabin lift generally refers to a compact lift designed for lighter use or smaller spaces, often found in low- to mid-rise buildings. A passenger lift is a full lift system engineered to transport multiple users efficiently, typically used in larger or higher-traffic buildings where greater capacity and performance are required.
How much does a passenger lift cost in the UK?
The cost of a passenger lift varies depending on the number of floors served, size and load capacity. We provide quotations based on your customised requirements. If you're exploring costs more broadly, including upgrades and modernisation, our guide on how much it costs to refurbish a lift offers helpful insights.
Goods Passenger Lift
For buildings that require larger load capacities, higher speeds and frequent usage, a goods passenger lift is an ideal solution – especially if you have the space available for a replacement lift or a new-build installation.Whether your building is large or small, new or existing, our range of machine-room (MR) passenger lifts has you covered. Each lift delivers a unique user experience with exceptional quality, reliability and design, suitable for any environment.
History
A beautiful place and well located near nature
Location
Wellness hotel in the heart of nature and mountains
Services
We offer a wide range of services in our hotel
Low Pit and Reduced Headroom Lifts
At Acute Elevators, we supply a range of lift products to overcome site constraints for lifts requiring low or reduced pit depths and /or low or reduced headroom categories under the Machinery Directive 2006/42/EC and EN81-21 of the lift regulations.
